My Home Theater setup

My home Theater is located in my Family room which is 14 x 23. My front projector is ceiling mounted. The screen is a fixed mount located on the short wall.

Equipment:

Marantz AV7704 11.2 Channel Dolby Atmos/DTS:X/Auro 3D Ready Audio/Video Processor (7.1.4 configuration)

Sherbourn 7/200 Seven Channel Amplifier

B&K Reference 200.7 Series Two Seven Channel Amplifier

Toshiba HD-XA2 High Definition DVD Player

Oppo UDP-203 Ultra High Definition Blu-ray Player

Samsung UBD-K8500 Ultra High Definition Blu-ray Disc Player

Sony Playstation 3 Blu-ray Disc playback

Sony BDP-CX960 400 Disc Blu-ray Jukebox

Marantz DV7001 Universal Disc player (HDMI 1080p)

Sony DVP-CX995V 400 Disc HDMI equipped DVD/SACD player

Panamax M5400-M Power Conditioner/Automatic Voltage Regulator/Surge Protector

Tivo Roamio Plus DVR

Roku Premiere Plus 4K/HDR Streaming Player

System controllers:

Apple iPad using iRule/Pro/Simple Home Universal Remote Control Applications


Speakers:

Canton Ergo series DC 611-  Front. ( Biwired )

Canton Ergo series 605 CM - Center channel

SVS Ultra Surround speakers (Bipole configuration) .

Canton Ergo series 601 (2) - Front Height channels.

Canton In-Ceiling 965-DT (4) Speakers (Top/Rear position)

Parasound M Series In-Walls Rear Center Surrounds.

Dual SVS PC4000 Cylinder Subwoofers



Racks:

Sanus Systems Euro Series 6 Shelf Rack

Plateau SR65

Front Projector:

JVC DLA-RS500u 3D/4K Ready High Definition Front Projector

JVC 3D IR Emitter/JVC 3D Active Shutter Glassess/xPanD X103 Universal Active Shutter 3D glasses

Theater room monitor - TCL 55P607 55" Ultra HD LED with HDR10/Dolby Vision



Screen:
Stewart Filmscreen - Studiotek 130 G3 100" 16:9 Screen

Carada Masquerade Horizontal Electronic Masking System



Seating is by Seat Craft Signature Series.



Screen Drapery is Duvetyne - Custom made by Sew What Inc. - The screen masking material is Duck cloth purchased from Joanne's fabrics.


 I designed and built a platform, giving us another row of seating. The platform is 8 feet long by 4.6 feet deep and appoximately 8 3/4 inches high. I added lighting to the platform, which runs along the underside of the top lip ( which I extended two inches all around ). The lighting effect when the room is dark is excellent. This addition makes things more theaterlike as well as making it quite a bit more comfortable when there is company over to watch a movie.

I also designed and built from scratch the DVD rack. I used a mahogany stain followed by polyurethane. I rounded and beveled the corners and edges which gives them a less squared look.

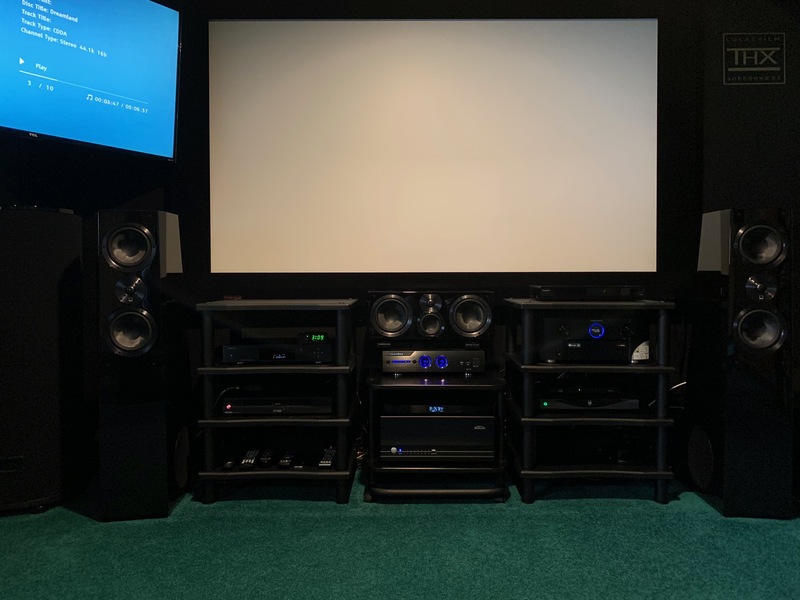

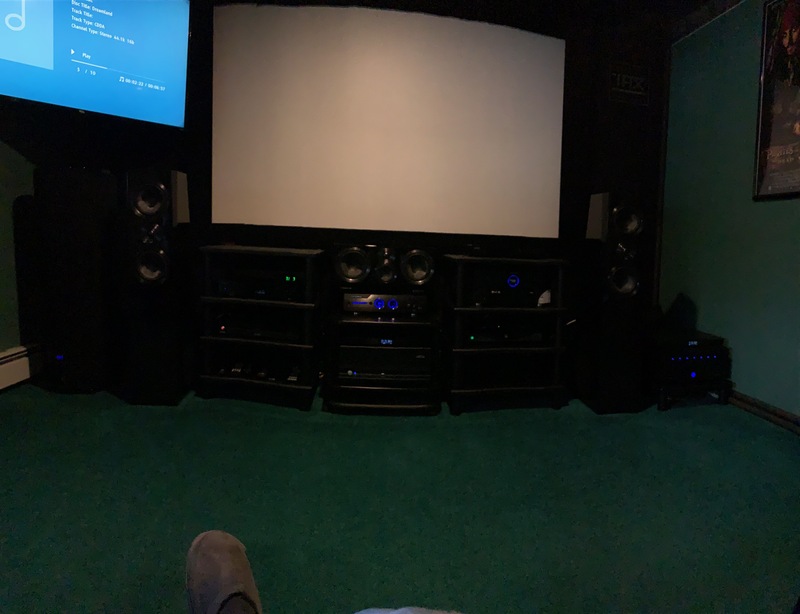

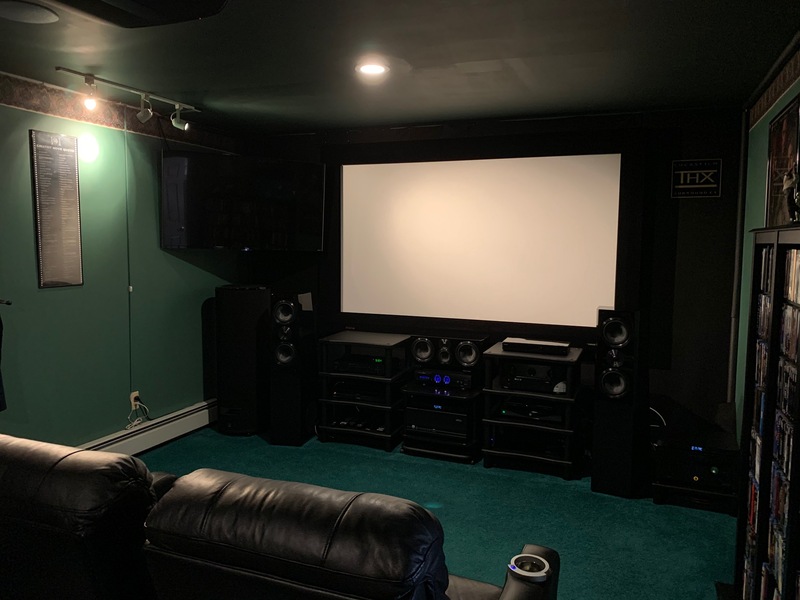

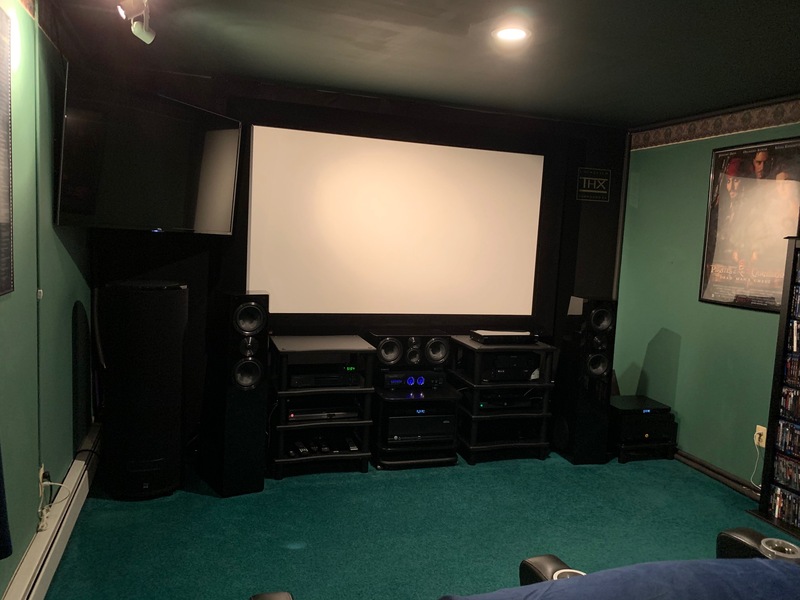

A shot taken from the front

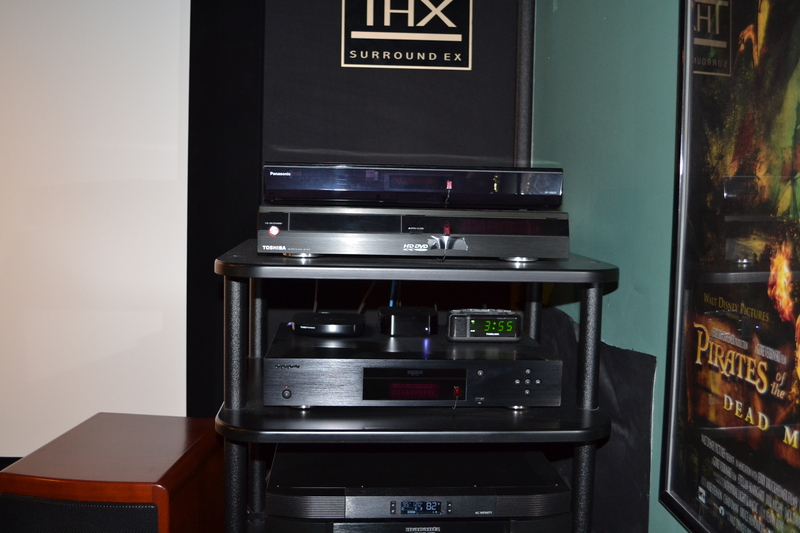

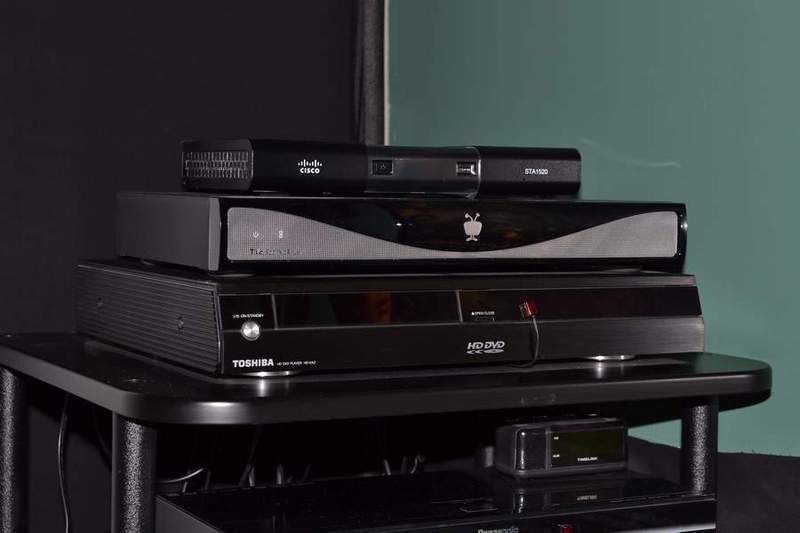

Tivo Roamio Plus & Toshiba HD-XA2 HD DVD Player

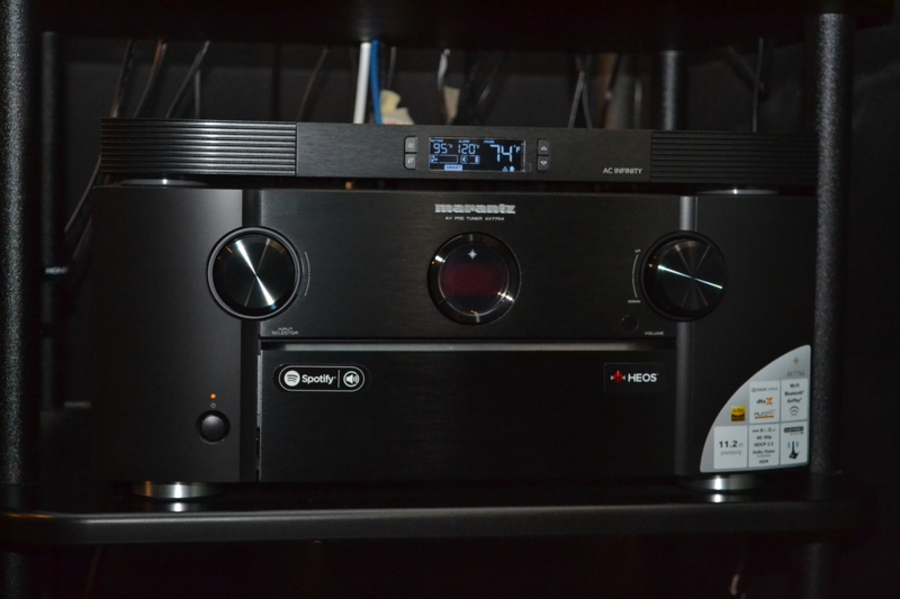

Marantz AV7704 11.2 Channel Audio/Video Processor

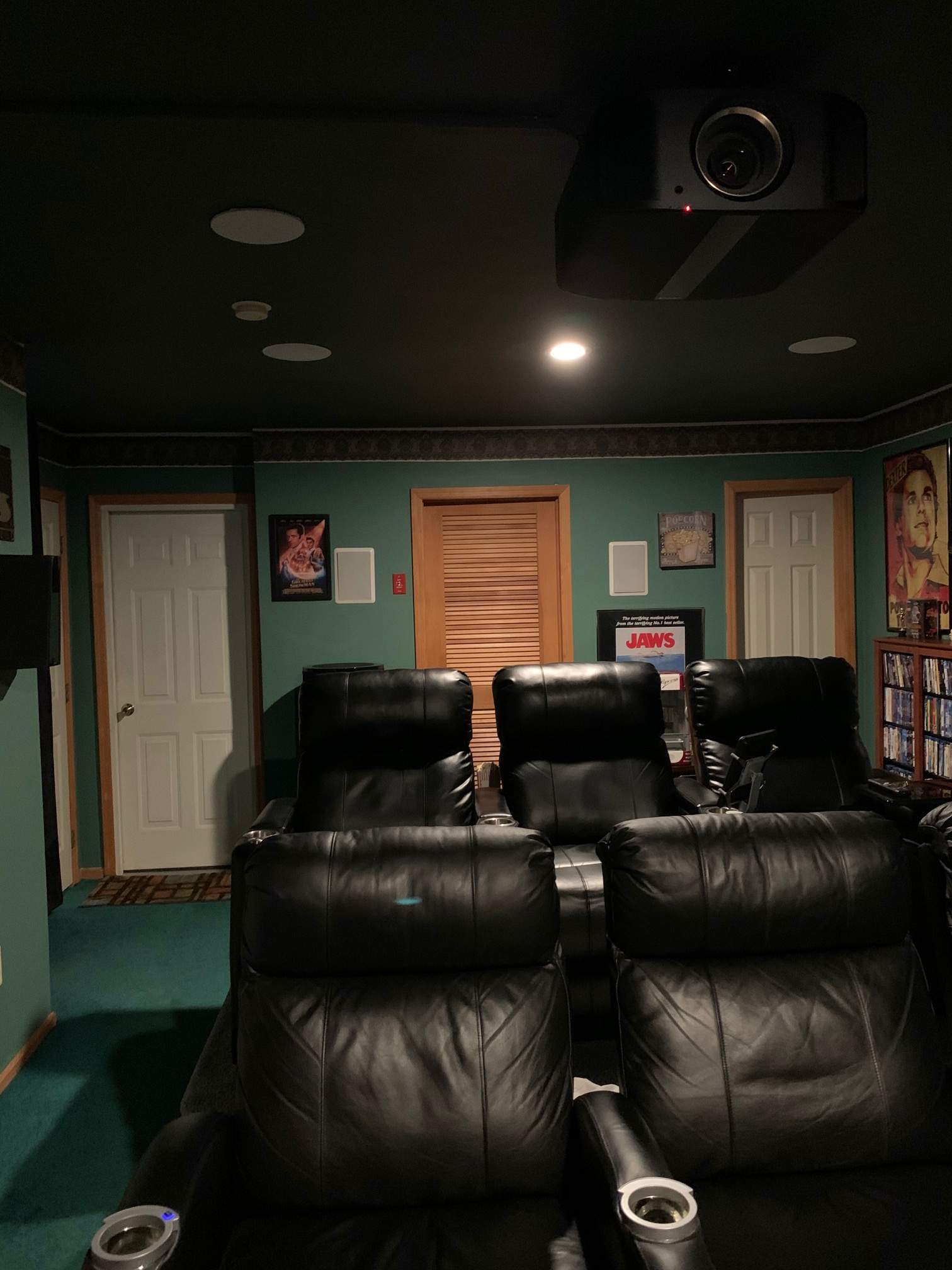

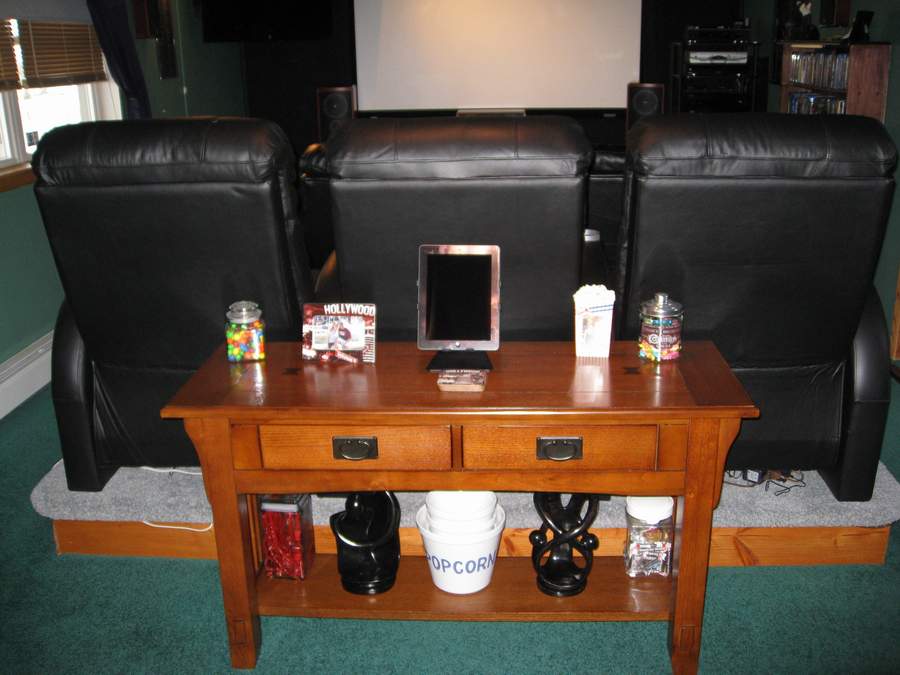

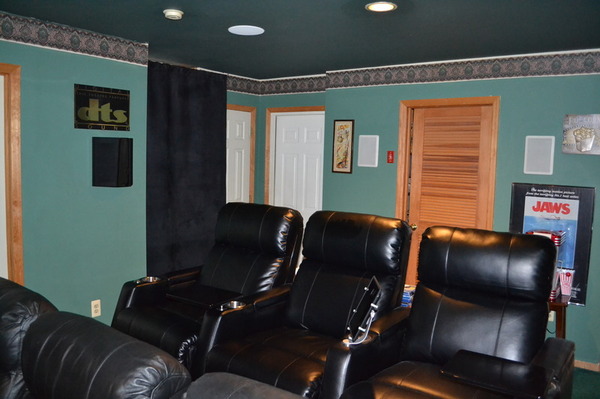

A shot of our theater taken from the rear

My Oppo UDP-203 and Samsung UBD-K8500 Ultra HD Blu-ray Players

My Sanus Rack and gear

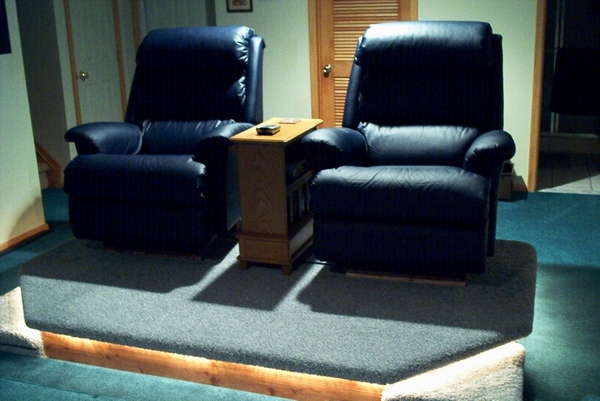

This shot clearly shows the platform and it's lighting

Sherbourn 7/200 Seven Channel Amplifier

Another Angle

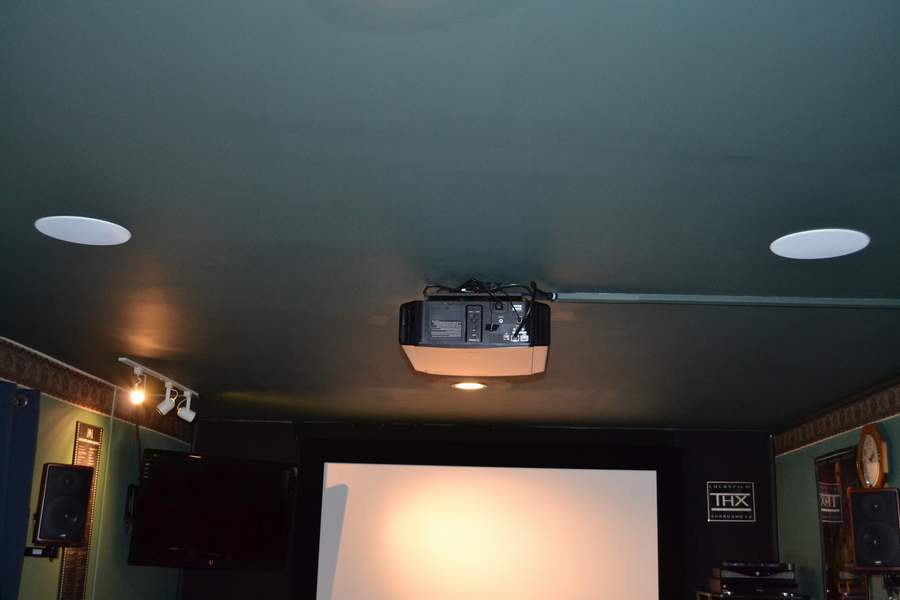

The Canton In-Ceiling Speakers

Here is a closer look at the SR65 from Plateau

Another angle

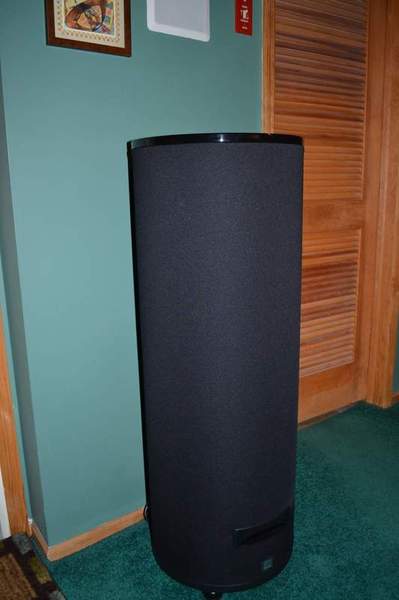

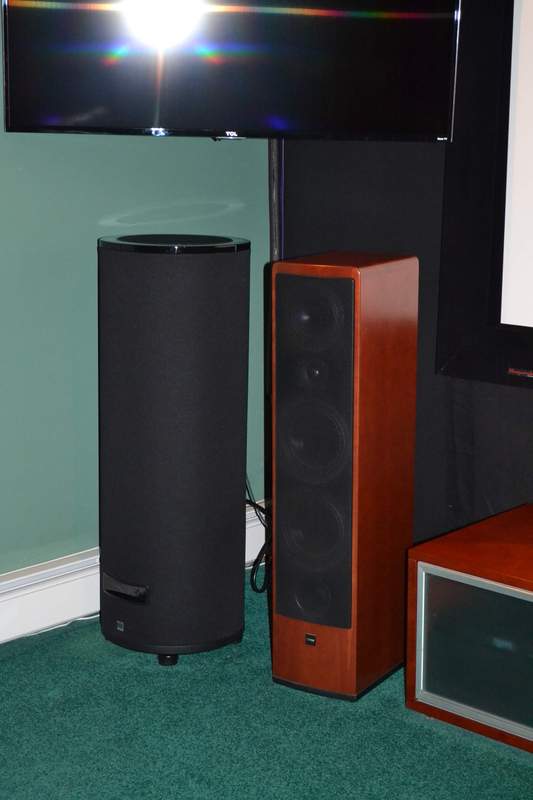

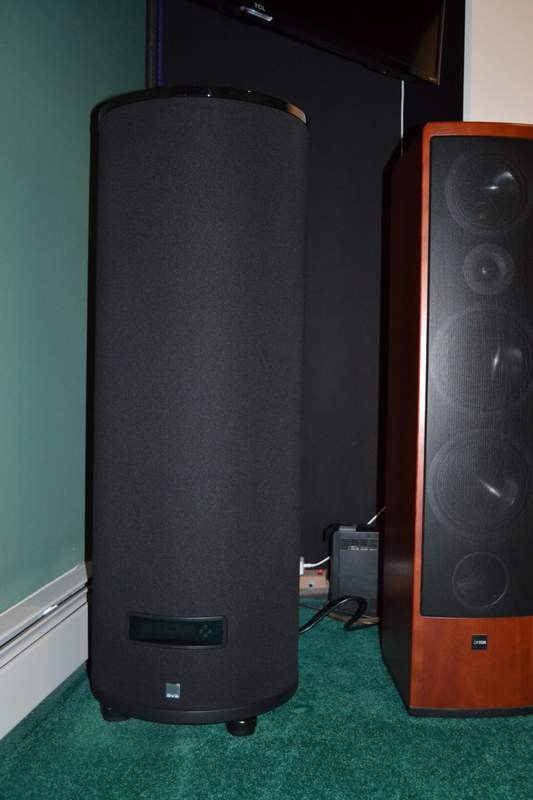

SVS PC4000 (Front)

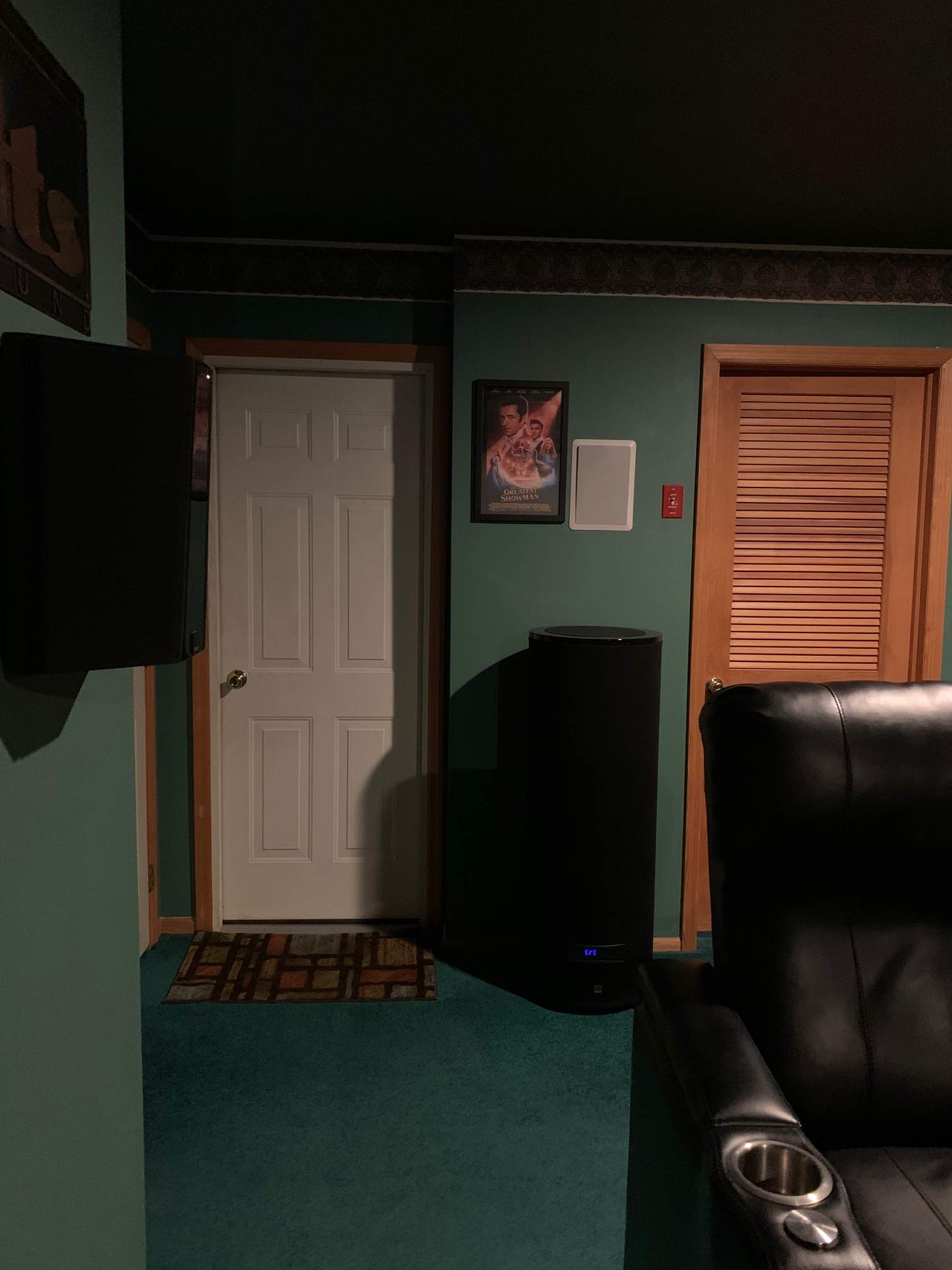

SVS PC4000 Cylinder Subwoofer (Rear)

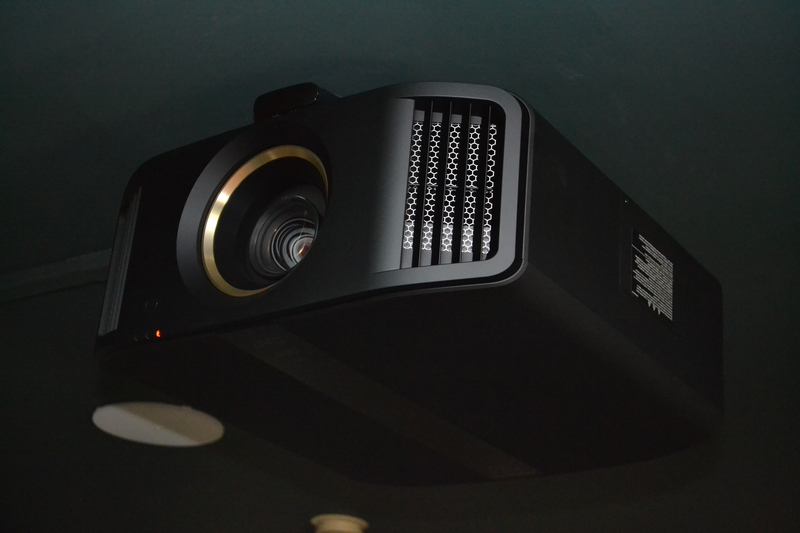

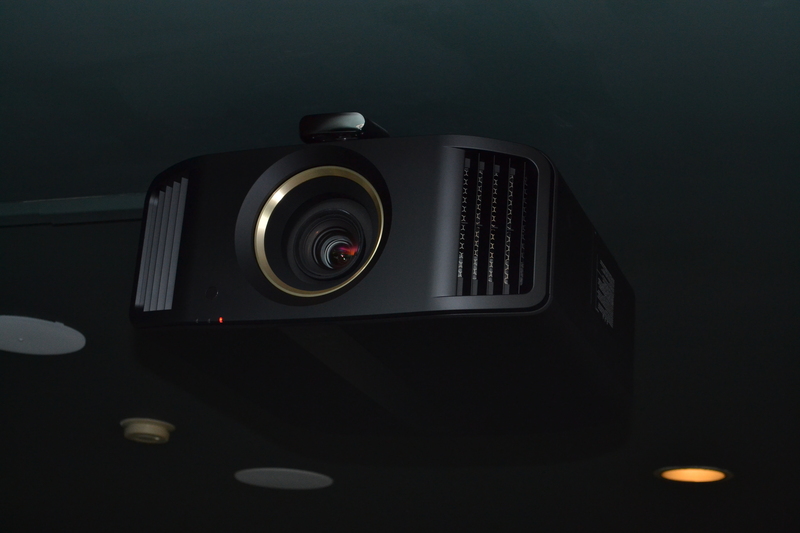

A shot of my JVC RS500U

The 3D emitter is sitting on top of the projector

Here is an other angle

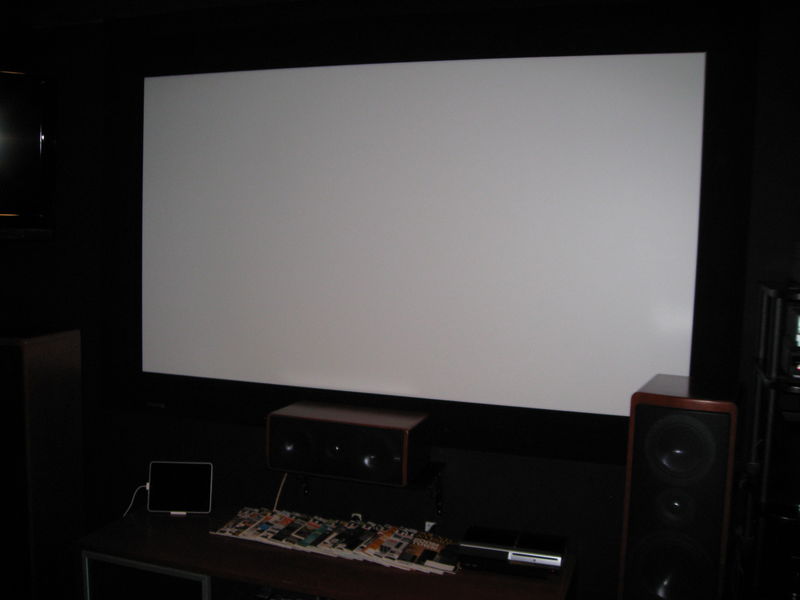

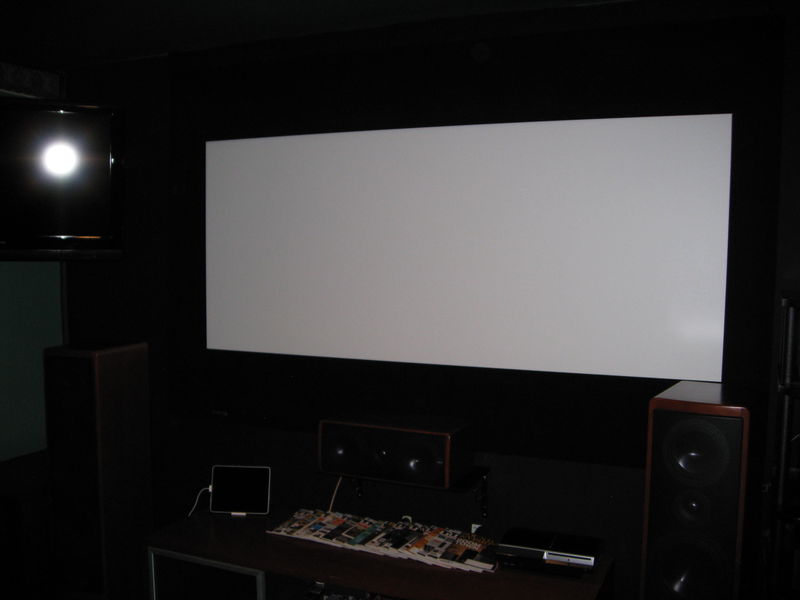

The Carada Masquerade - 2.35:1

The Carada Masquerade - 16:9
